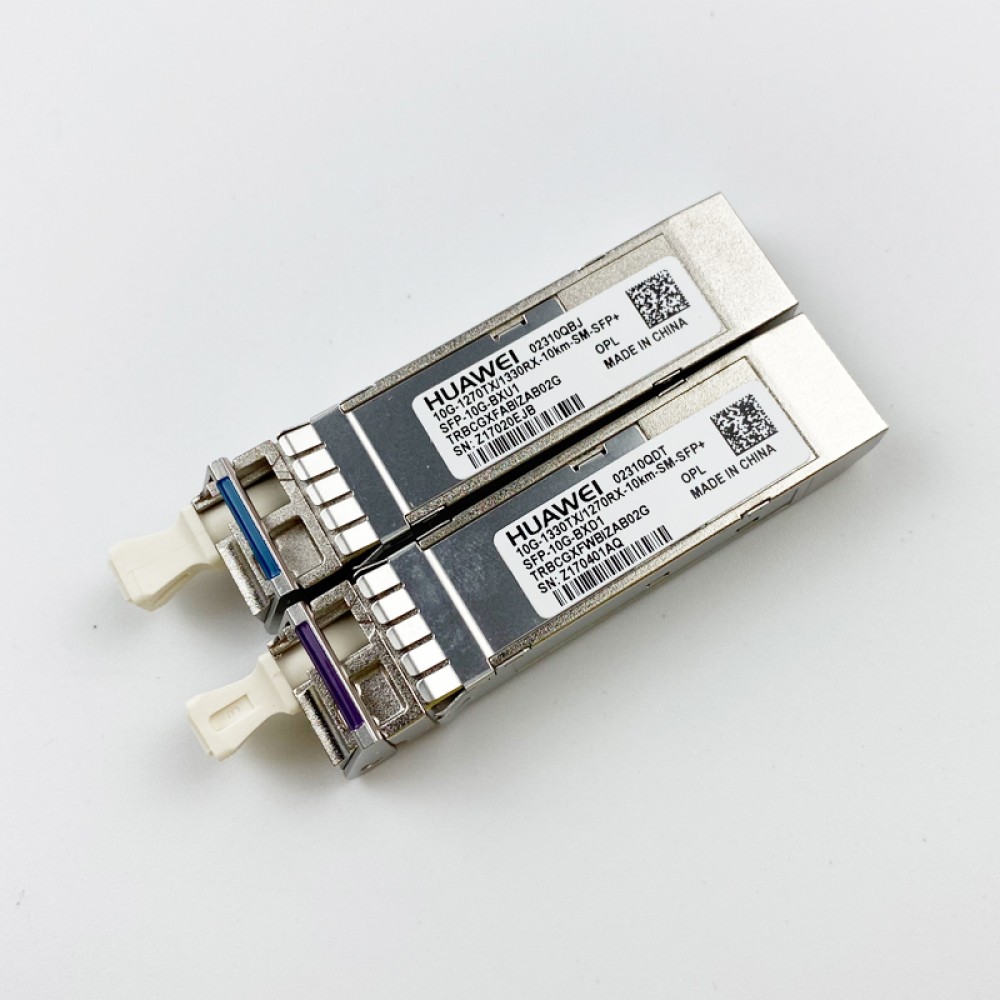

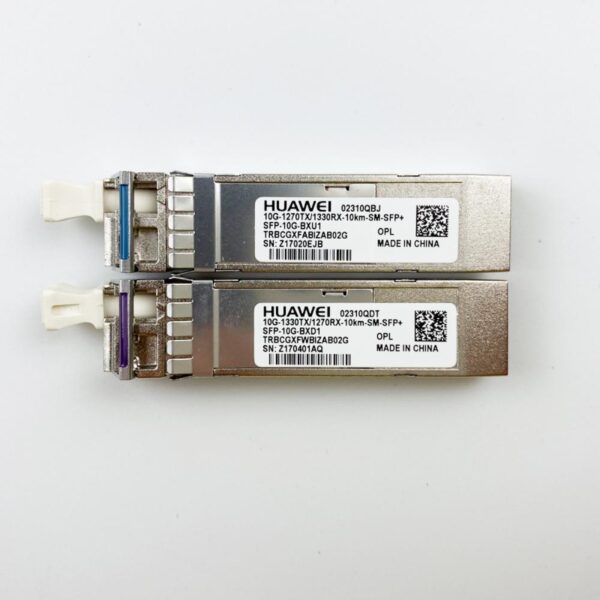

SFP-10G-BXU1 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC)

Description

• Brand: Huawei
• 02310QBJ – Genuine Huawei SFP-10G-BXU1 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC)

  Basic Information

  Module name: SFP-10G-BXU1
  Part Number: 02310QBJ
  Model: SFP-10G-BXU1
  Form factor: SFP+
  Application standard/Type: 10GBASE-BX
  Connector type: LC
  Optical fiber type: SMF
  Type of the end face of the fiber ceramic ferrule: PC or UPC
  Working case temperature [°C (°F)]: -40°C to +85°C (-40°F to +185°F)
  Transmission rate [bit/s]: 10Gbit/s
  Target transmission distance [km]: Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
  Transmitter Optical Characteristics

  Center wavelength [nm]: 1330(RX)1270(TX)
  Maximum Tx optical power (AVG) [dBm]: 0.5 dBm
  Minimum Tx optical power (AVG) [dBm]: -8.2 dBm
  Minimum extinction ratio [dBm]: 3.5 dBm
  Receiver Optical Characteristics

  Rx sensitivity (OMA) [dBm]: -14.4 dBm
  Overload power (AVG) [dBm]: 0.5 dBm
